grain seed destoner
- Qiaopai
- China
1. Gravity grading destoner adopts modular design, which is very convenient for replacement and daily maintenance, and improves the overall use efficiency.
2. The wind force and screen movement speed of seed destoner can be adjusted to adapt to materials of various densities, shapes and particle sizes.
3. Nut destoner can act on the inclined moving screen through the suction pipe according to the difference in gravity and suspension speed between the material and heavier impurities such as sand and gravel.
Introduction of grain seed and nut destoner:
Gravity grading destoner is a device used to separate heavy impurities such as sand and gravel, metal particles, etc. From grains and granular materials. Seed destoner adopts advanced gravity sorting principle, combined with air suction, to remove foreign matter with similar particle size and different specific gravity. Therefore, nut destoner can be widely used in the processing of crops such as rice, wheat, barley, rapeseed, peanuts, and mung beans.
Features of grain seed and nut destoner:
1. Gravity grading destoner adopts a reasonably designed inclined screen surface, which can automatically discharge light materials and is very convenient to operate.
2. The entire screen surface design of seed destoner can be adjusted according to the characteristics of different grains and particles to achieve dynamic separation during the sorting process.
3. The main components of nut destoner are made of high-quality steel, which vibrates smoothly during operation and will not affect the workshop structure. The suction system of nut destoner is equipped with an efficient fan. Gravity grading destoner can not only provide stable wind power, but also prevent dust leakage and protect the production environment.
Use of grain seed and nut destoner:
Seed destoner can be used for the stone removal of rice, wheat, barley, corn, rapeseed and other crops in the grain industry before shelling and milling, effectively avoiding damage to equipment and improving product quality. Our nut destoner can also remove heavy impurities such as pebbles, metals, and hard shells in the processing of grains such as mung beans, red beans, sorghum, and millet. In oil crops such as peanuts, sunflower seeds, and sesame, seed destoner can be used to remove excess impurities and increase oil yield.
Technical parameters of gravity grading destoner:
Model of seed destoner | Power of seed destoner | Input capacity of seed destoner | Overall dimensions(L*W*H) |
1250 | 7.9kw(380v) | 3-5mt/h | 2.5m×4m×3.95m |
1750 | 15.5kw(380v) | 4-6mt/h | 2.3m×5.3m×4.7m |
Installation and debugging of grain seed and nut destoner:
Install the gravity grading destoner firmly on the ground, connect the power supply, and check whether the vibration device and fan can operate normally. Then check the tension and angle of the seed destoner screen, and adjust the tilt angle according to the material to be processed. Feed the material evenly into the seed destoner feed port through a conveyor or manual feeding method, and keep the flow stable to avoid material accumulation. Adjust the suction volume according to the characteristics of the material. Generally, heavy impurities require strong suction to assist separation, while light materials require moderate suction. After starting the nut destoner, you can observe the stratification of the material on the screen surface. Heavy impurities are discharged from the bottom, and clean grains are discharged from the side or top. After the operation is completed, the power supply of the nut destoner should be turned off, and the screen, suction port, etc. Should be cleaned.
Notes on seed destoner:
During the use of seed destoner, the material must be kept dry. Wet materials are easy to adhere to the screen, affecting the separation effect, so they should be kept moderately dry. Do not overfeed the nut destoner. Grain seed and nut destoner may cause problems such as screen blockage and air duct disorder, affecting the service life. The nut destoner should also be cleaned regularly.
About us:

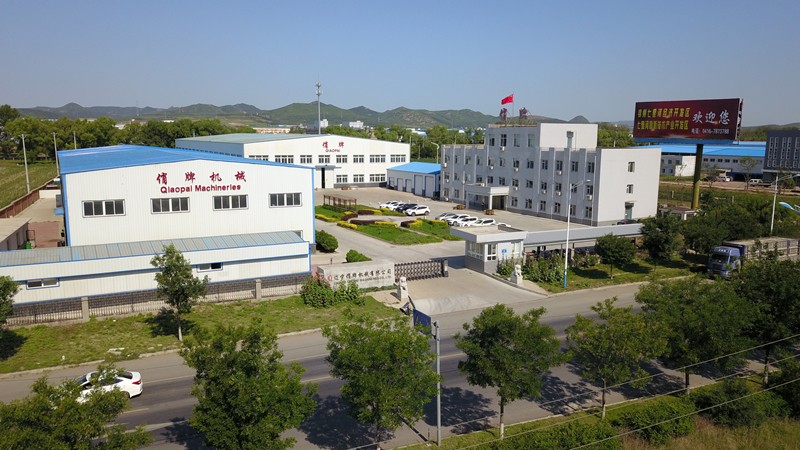

Liaoning Qiaopai Machineries Co., Ltd. has a high-quality R&D team, combining independent R&D advantages with talent advantages. It has obtained more than 150 national patents, and the number of patent applications has increased year by year. With advanced processing equipment, Qiaopai Machinery combines on-site design and fully considers the customer's functional configuration, becoming a global trusted customized shelling machinery expert.
